- Working reach:950mm
- Payload:3-6kgs
- Repeat Positioning Accuracy:±0.05mm
- Quantity of control axis:6 Aixs
- Motor:Servo Motor
- Function:Pick Forging Welding Place Load also available
- Structure Type:Series Connection
- Body Shell Material:Aluminum alloy
- Speed Reducer:Harmonic Reducer
- IP level:IP65
- Applicable Industries:Hotels
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Advertising Company
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Motor
- Condition:New
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Place of Origin:CN;GUA
- Brand Name:Robot Anno
- Weight:130
- Power:360

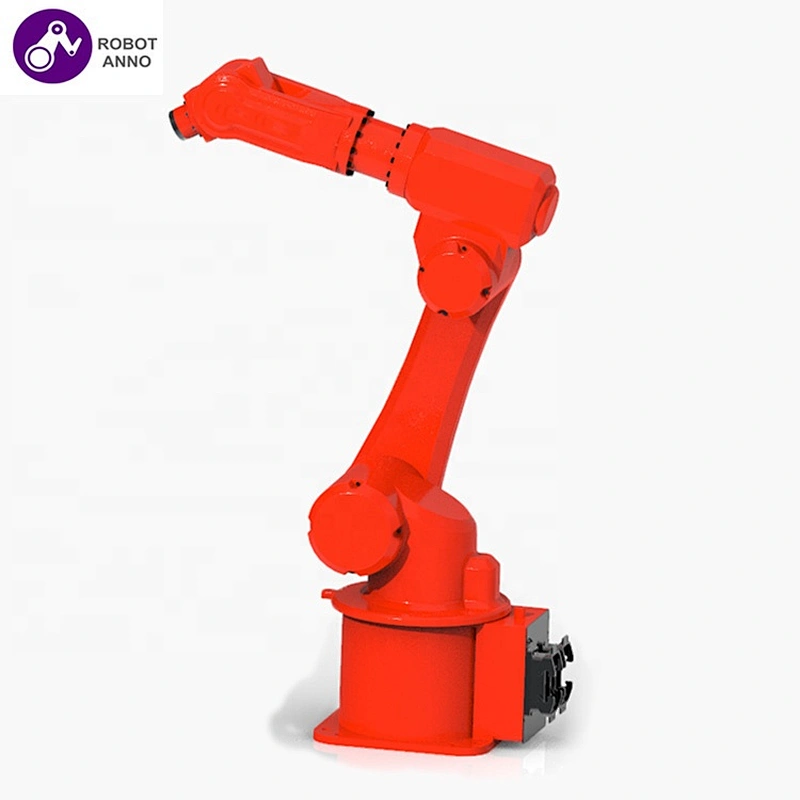

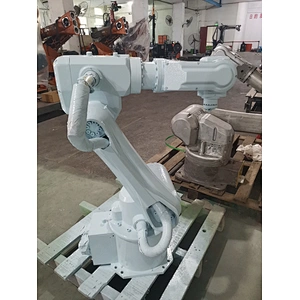

Product Description
Payload | 3 kg | ||
Reach | 950 mm | ||
Structure | Articulated | ||
Number of axes | 6 | ||
Repeatability | ±0.05 mm | ||

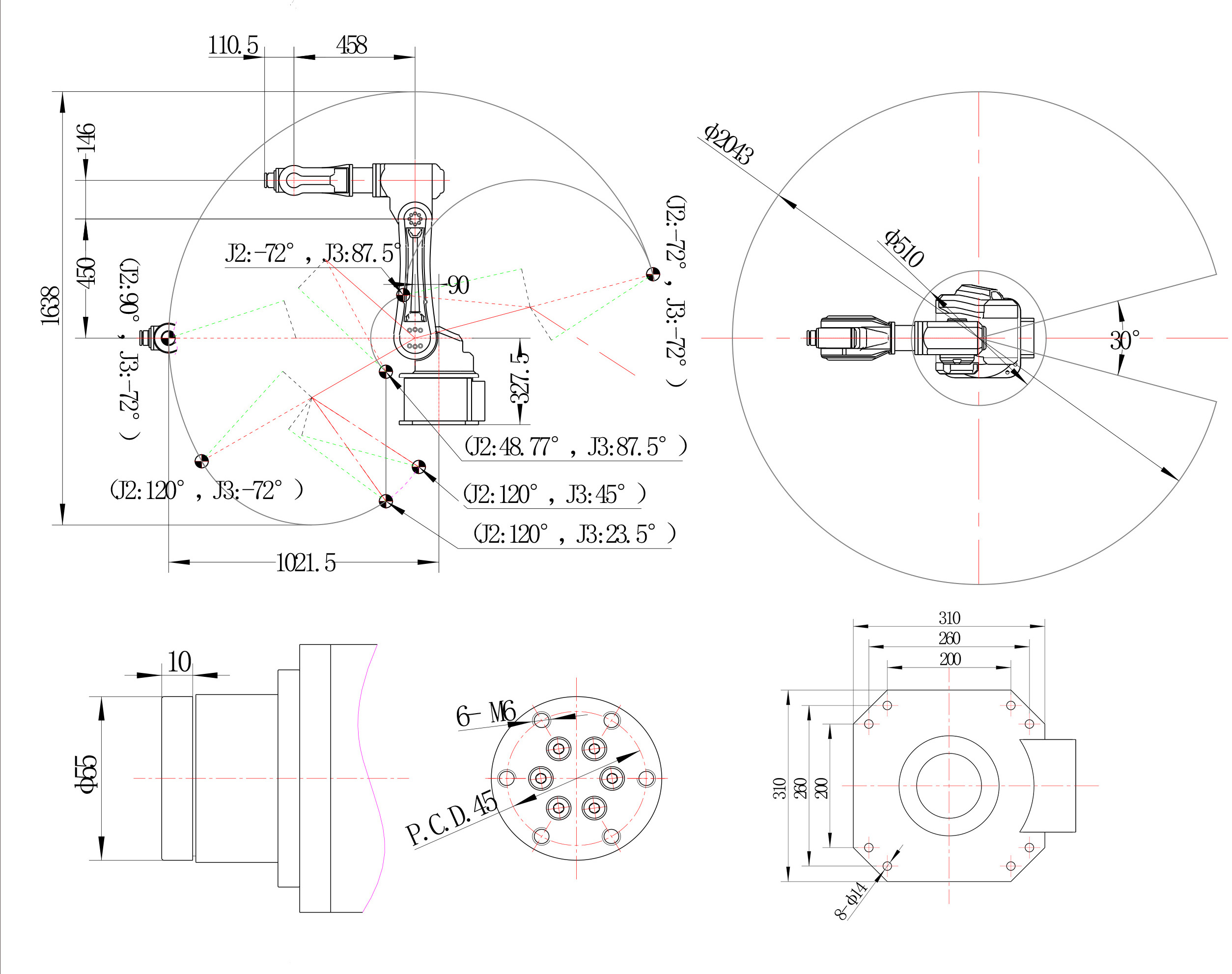

Max. motion range | Axis 1 | ±165° | |
Axis 2 | +120°/-72° | ||
Axis 3 | +87.5°/-72° | ||
Axis 4 | ±360° | ||
Axis 5 | ±115° | ||
Axis 6 | ±450° | ||
Max. speed | Axis 1 | 148°/sec | |
Axis 2 | 148°/sec | ||
Axis 3 | 222°/sec | ||
Axis 4 | 222°/sec | ||
Axis 5 | 222°/sec | ||
Axis 6 | 360°/sec | ||
Body Weight | ≈72 kg | ||
Mounting type | Ground, bracket, ceiling | ||
Ambient temperature | -20 ℃~80 °C | ||
Main Applications

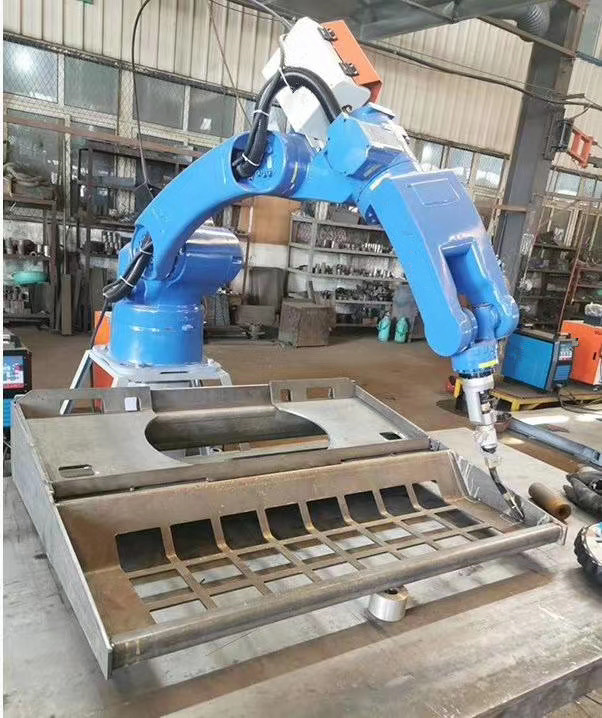

Materials handling, parts transfer, electric welding, machine management, palletizing, packaging, testing, deburring, grinding, gluing, assembly &painting
Applicable Cases

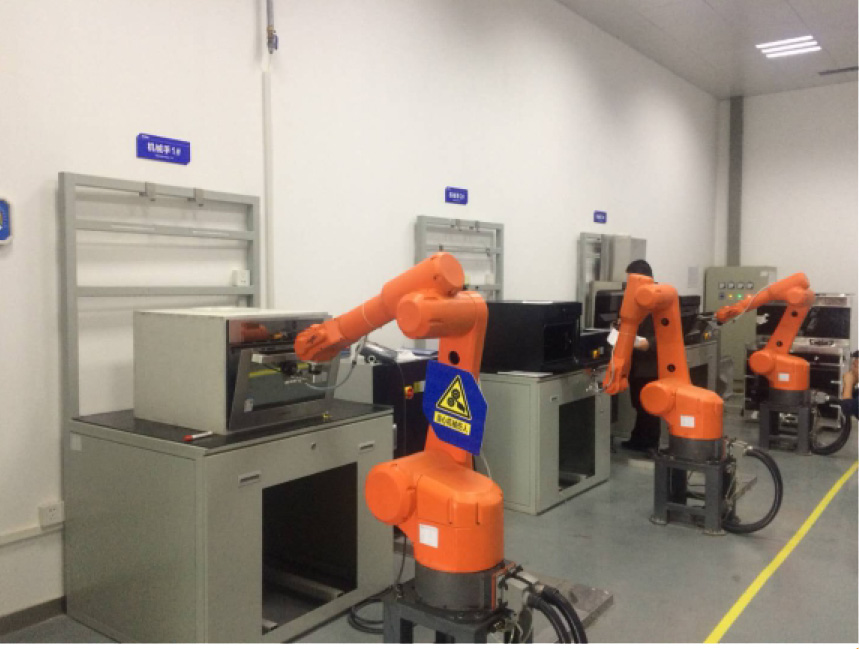

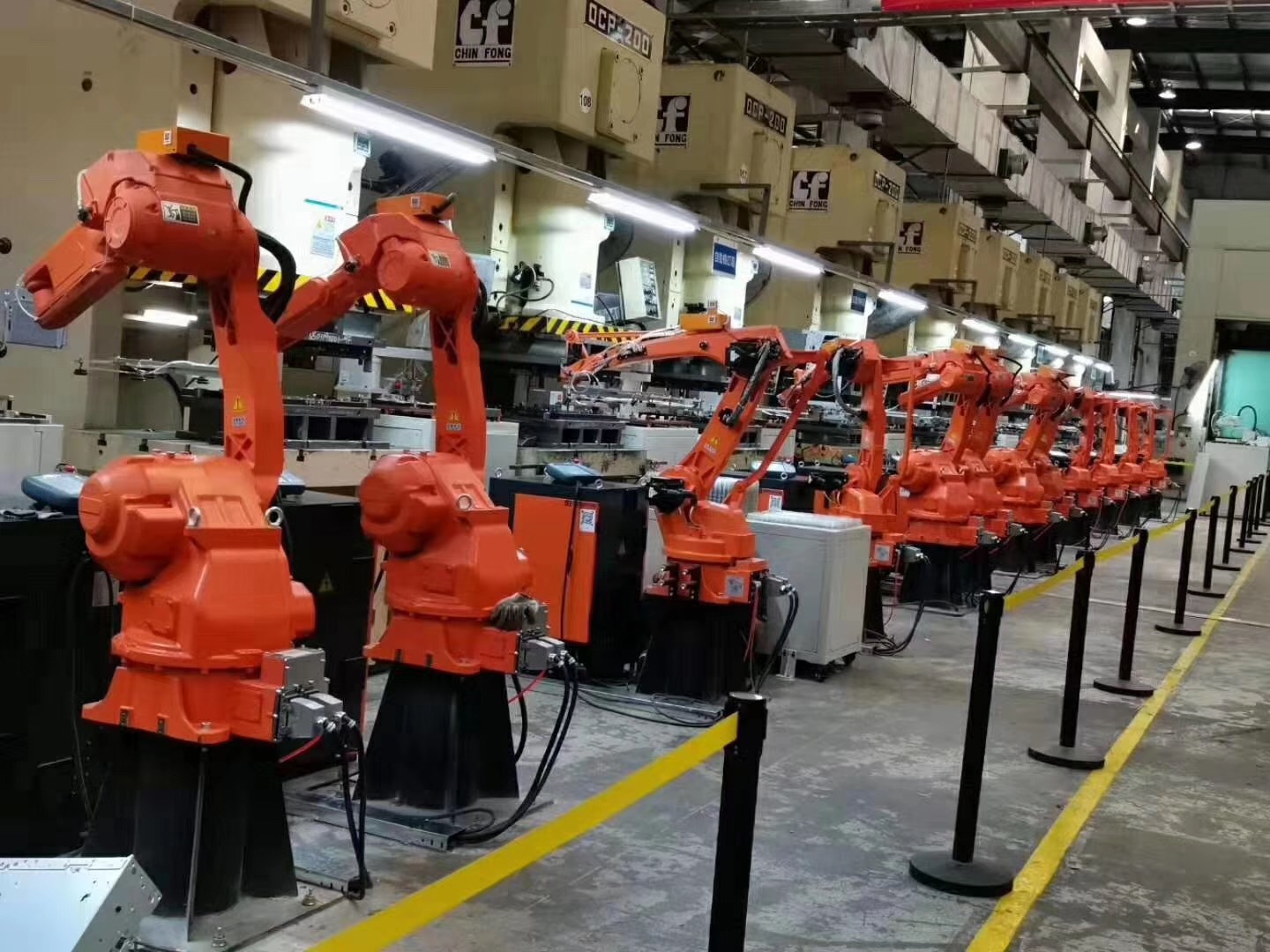

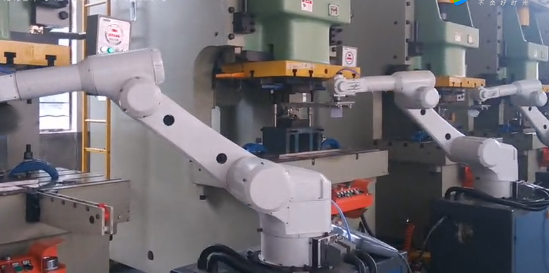

Lab aging test 950-A-6 is a small robot featuring short work cycle, reliable operation and high cost performance. Previous industrial applications prove its outstanding performance, high added value, quick return on investment and significant increase of productivity. The figure shows a customer’s field application. This robot is used in the customer’s aging test lab.
Detailed Images

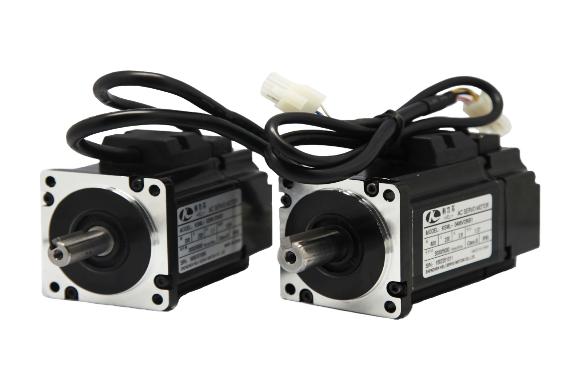

Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability

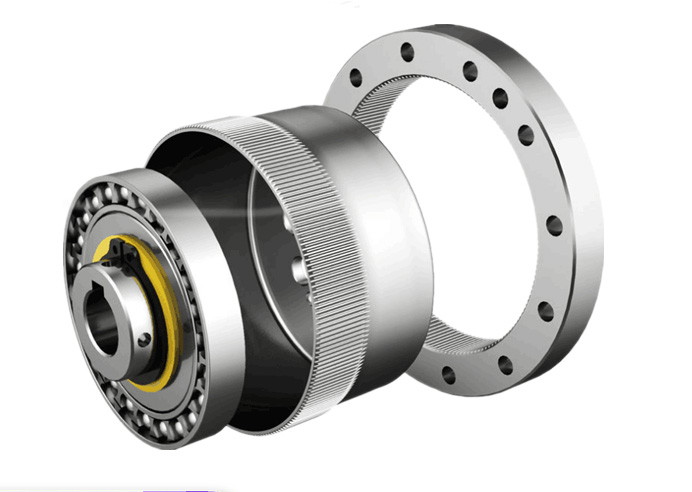

Harmonic Reducer
High-precision technology, high load capacity, fast transmission speed, stable operation

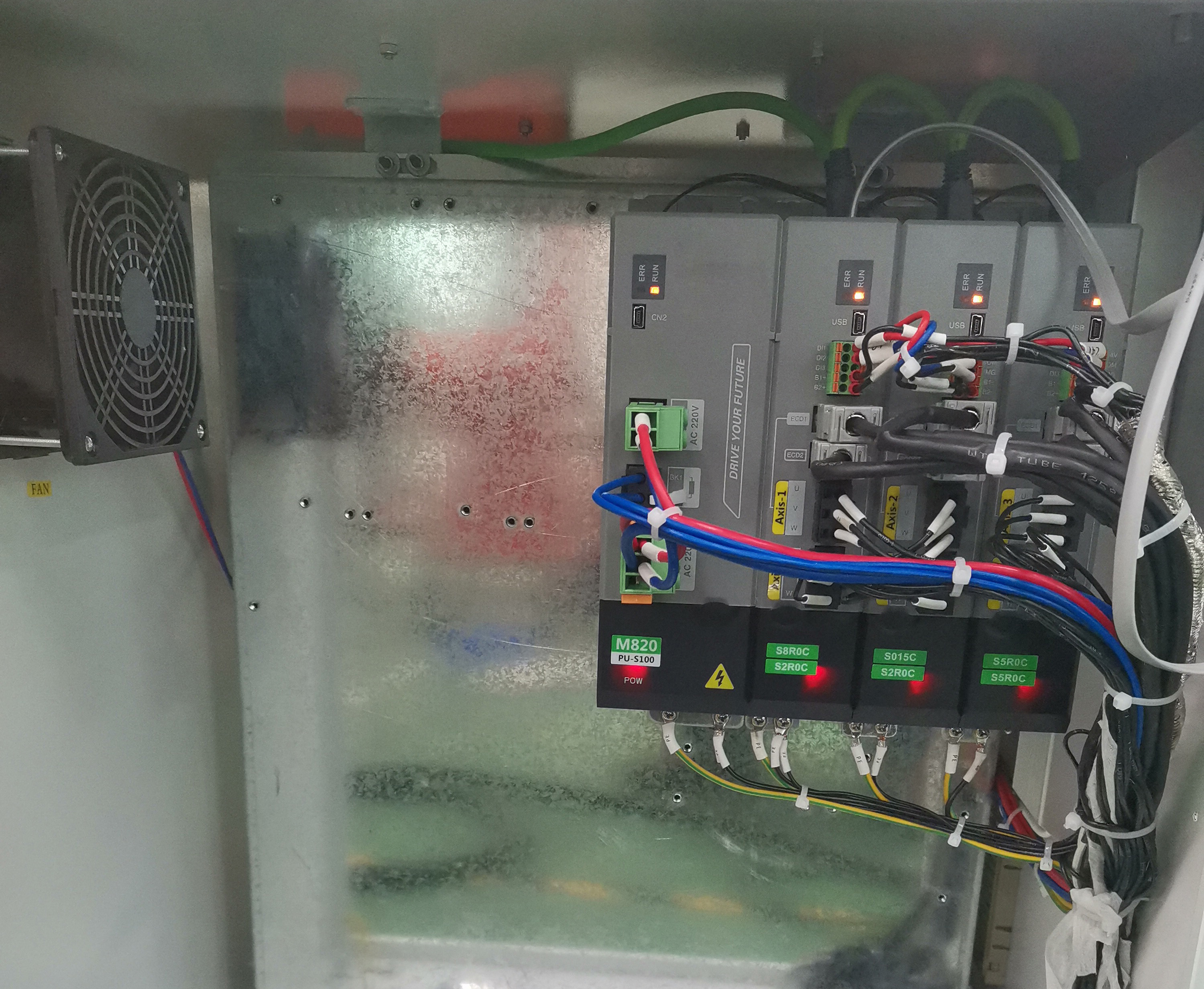

Servo Motor Driver
Control the servo motor by three methods: position, speed and torque

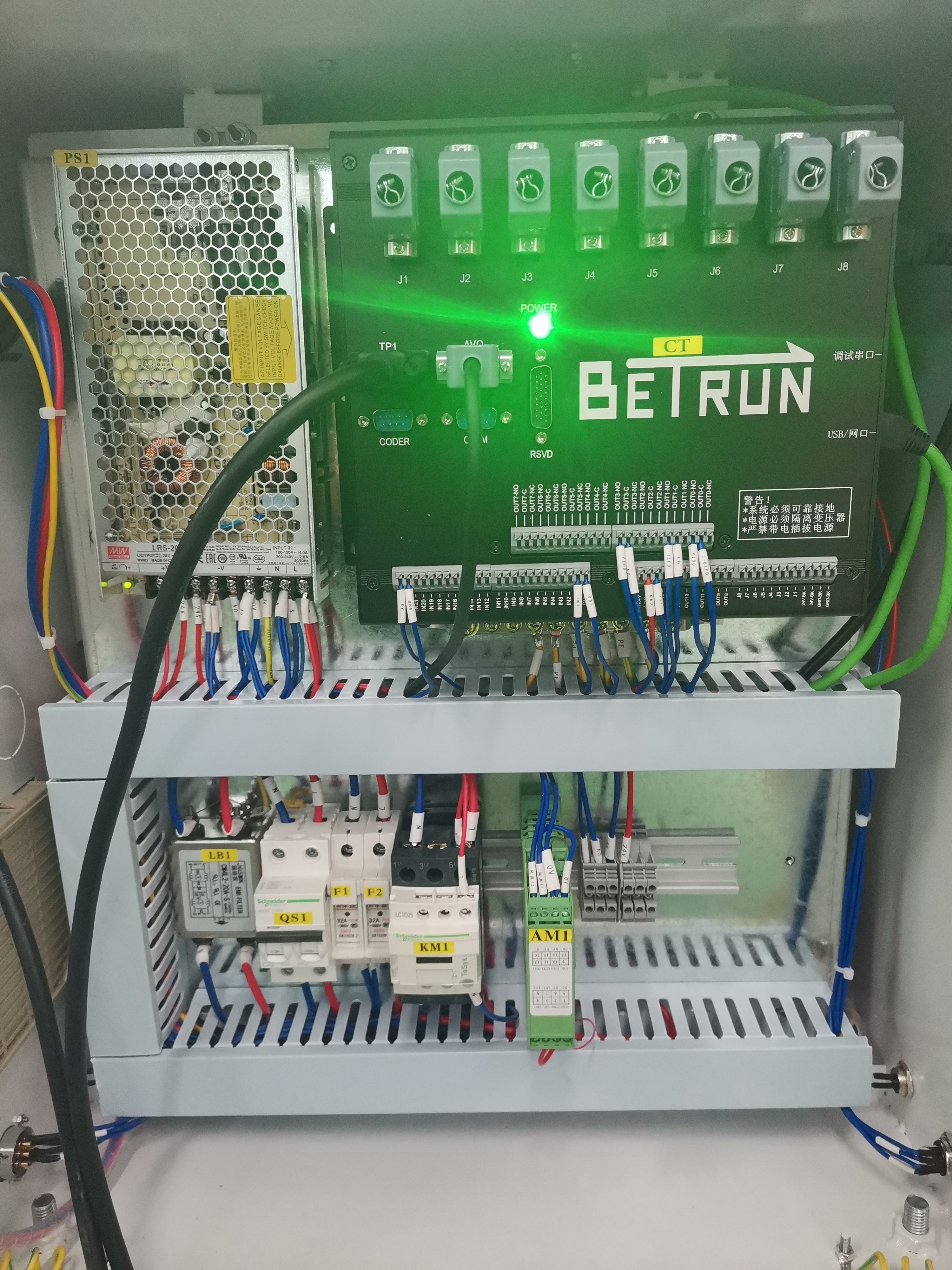

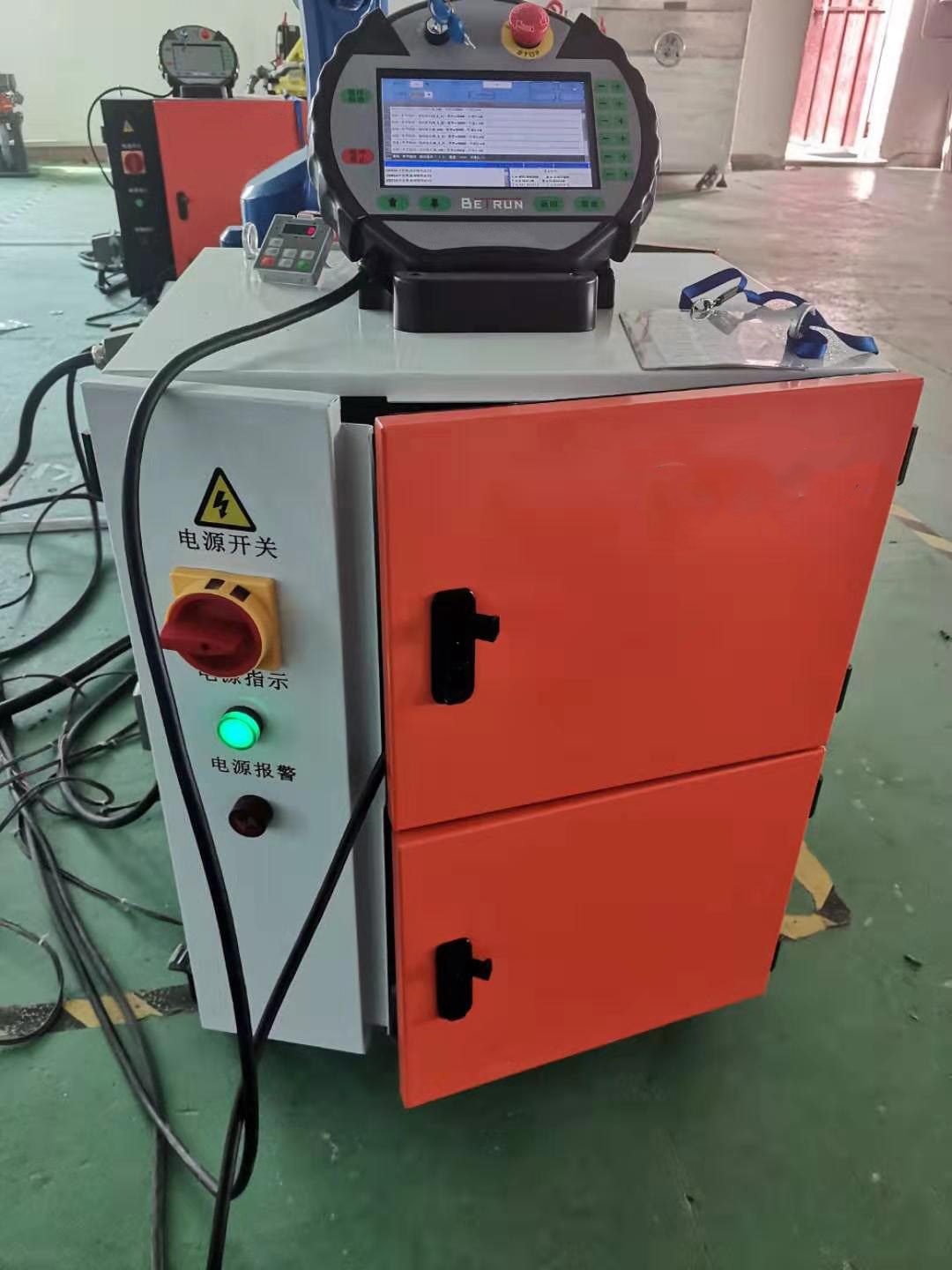

Controller Board
Including various interfaces such as IO module, safety module, A / V analog module

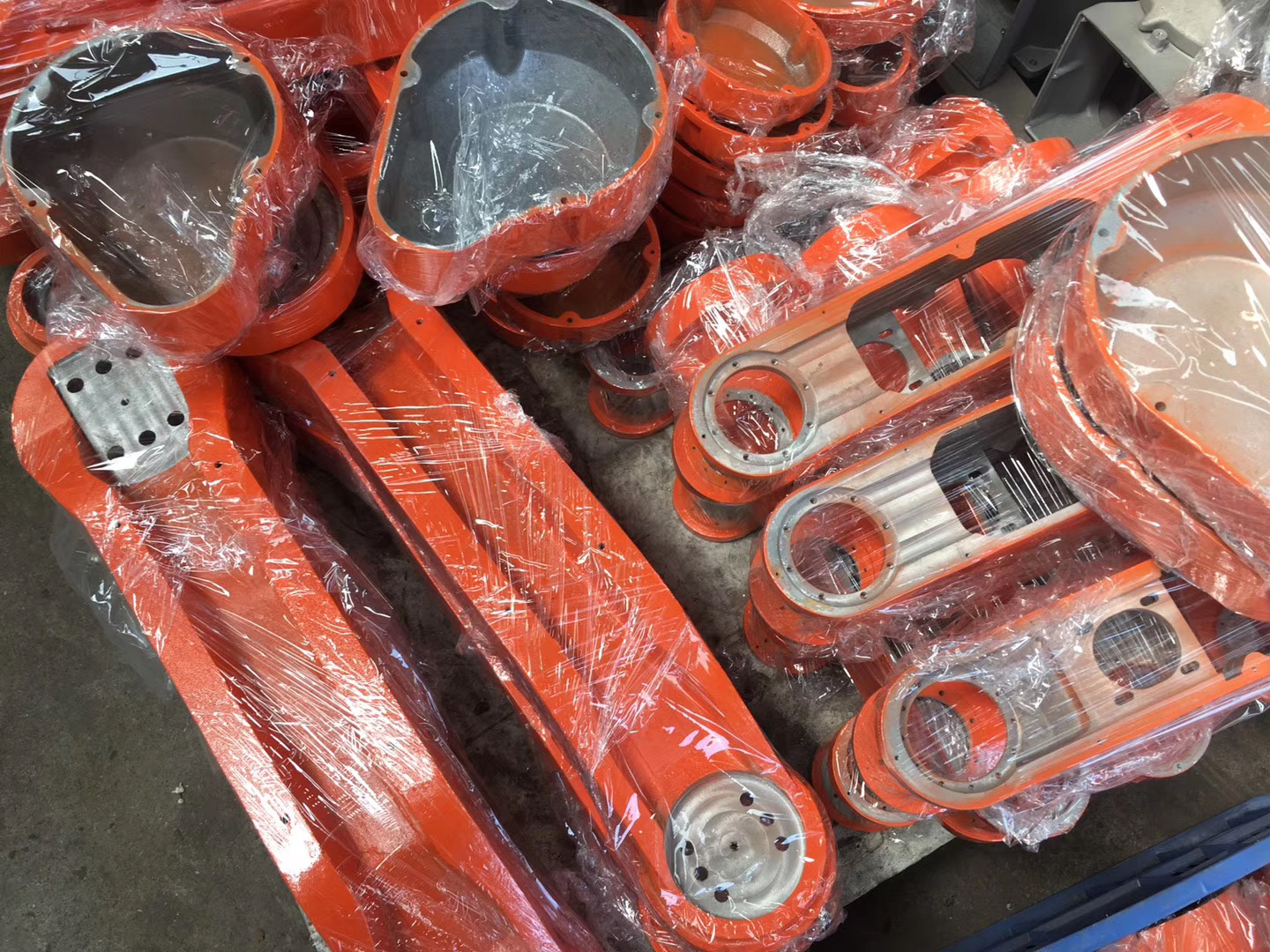

Aluminum Shell
Independent design, exquisite appearance, CNC machining and casting

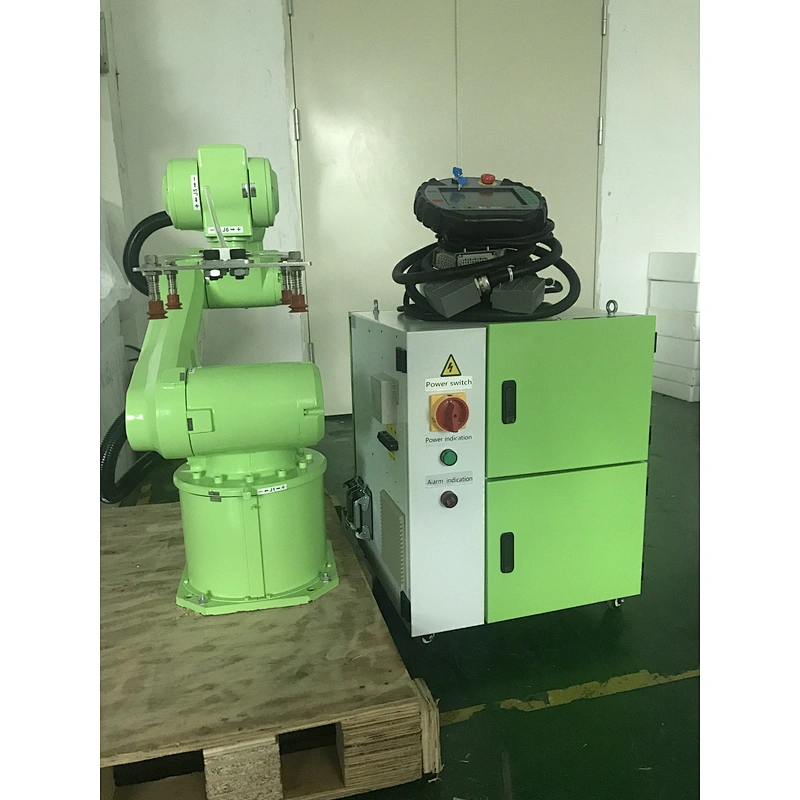

CONTROL SYSTEM
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Industrial standards &reliable stability.
Packing&Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Related Products

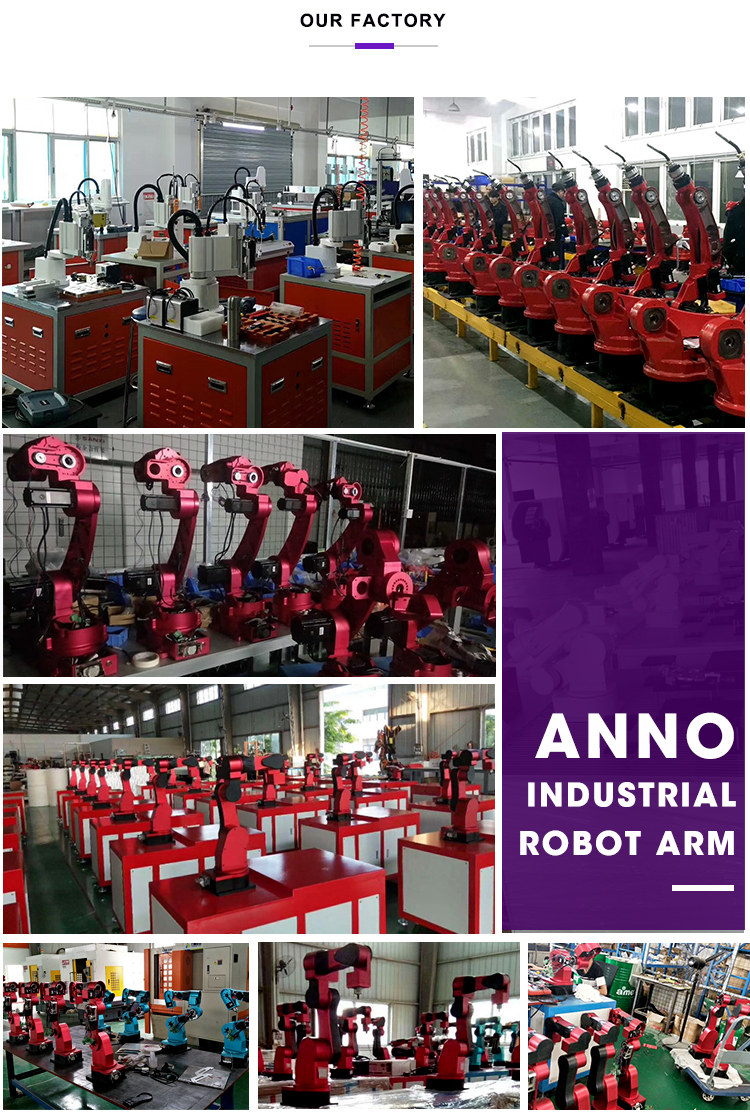

Company Introduction
