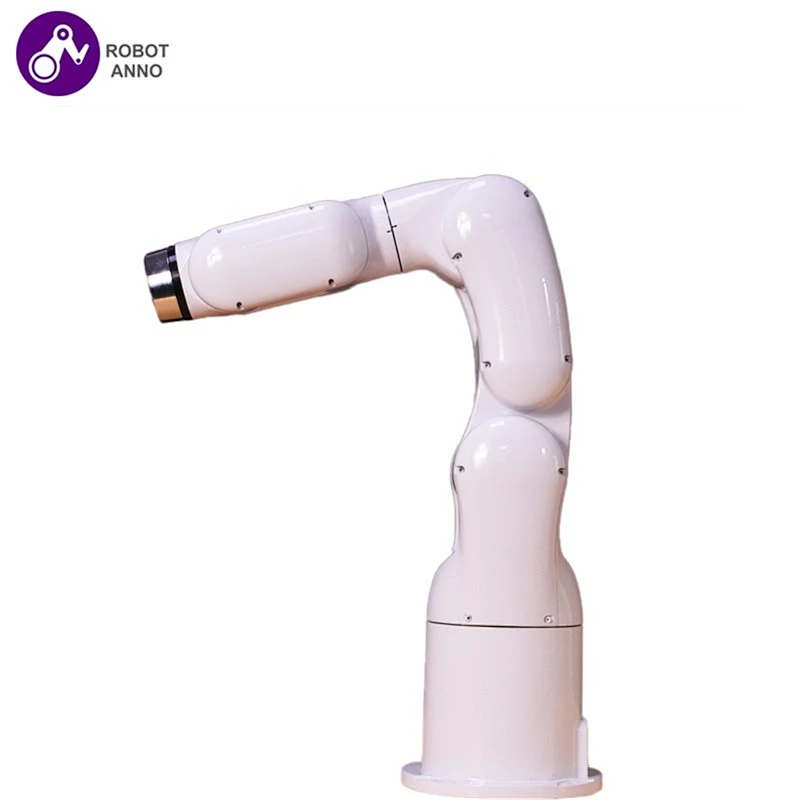

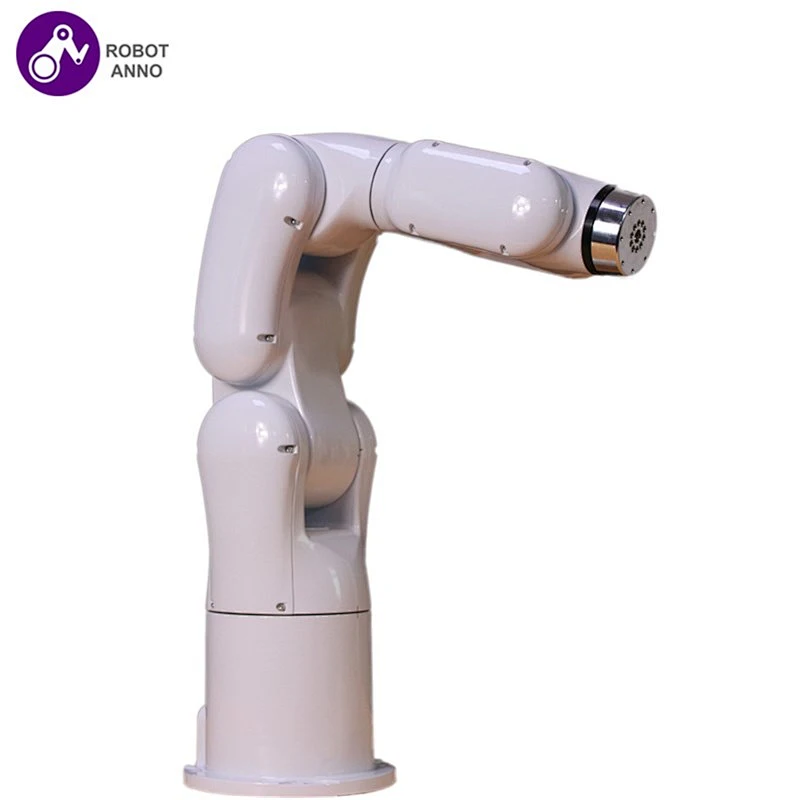

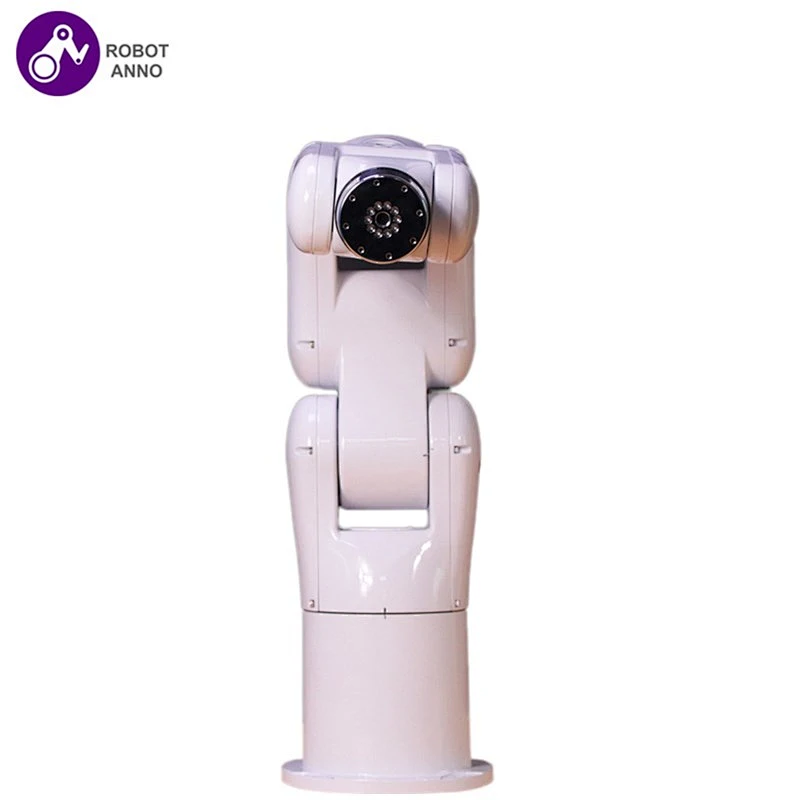

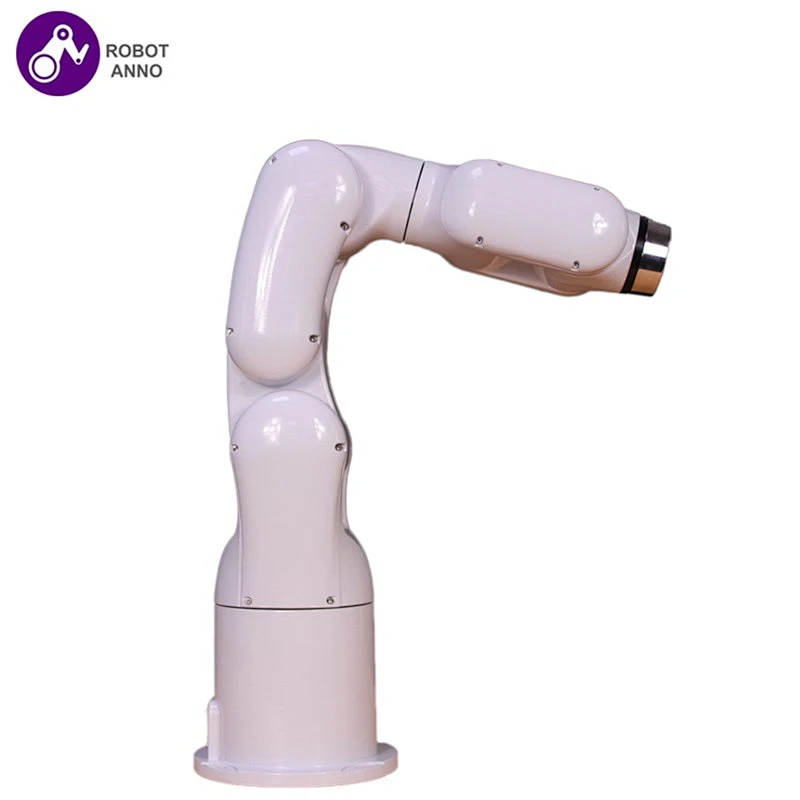

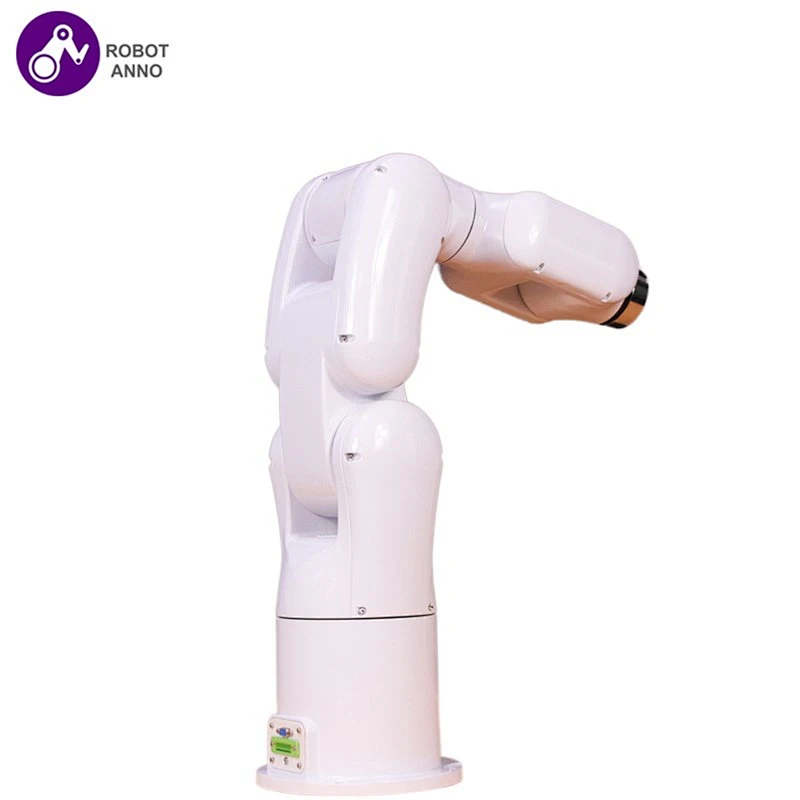

Automatic Metal Robotic Arm 6 Axis Manipulator Robot Coffee Station

Automatic Metal Robotic Arm 6 Axis Manipulator Robot Coffee Station

Model NO.: 603

Quantity:

Product Description

Type:Robot Arm
Function:Pick Forging Welding Place Load also available
Structure Type:Series Connection
Key words:Robot Arm With Vacuum Suction Cup
Body Shell Material:Metal
Repeat Positioning Accuracy:±0.1mm
Quantity of control axis:6 Aixs
Max loading:4kg
Working radius:540mm
Speed Reducer:Harmonic reducer
Applicable Industries:Hotels
Applicable Industries:Garment Shops
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Restaurant
Applicable Industries:Home Use
Applicable Industries:Retail
Applicable Industries:Food Shop
Applicable Industries:Printing Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Applicable Industries:Food & Beverage Shops
Applicable Industries:Advertising Company
After Warranty Service:Video technical support
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Not Available
Marketing Type:Hot Product 2019
Warranty of core components:1 Year
Core Components:Motor
Condition:New
Warranty:1 Year
After-sales Service Provided:Video technical support
Place of Origin:CN;GUA
Brand Name:RobotAnno
Weight:28
Dimension(L*W*H):80X40X80
Power:360
Certification:CE

Products Description

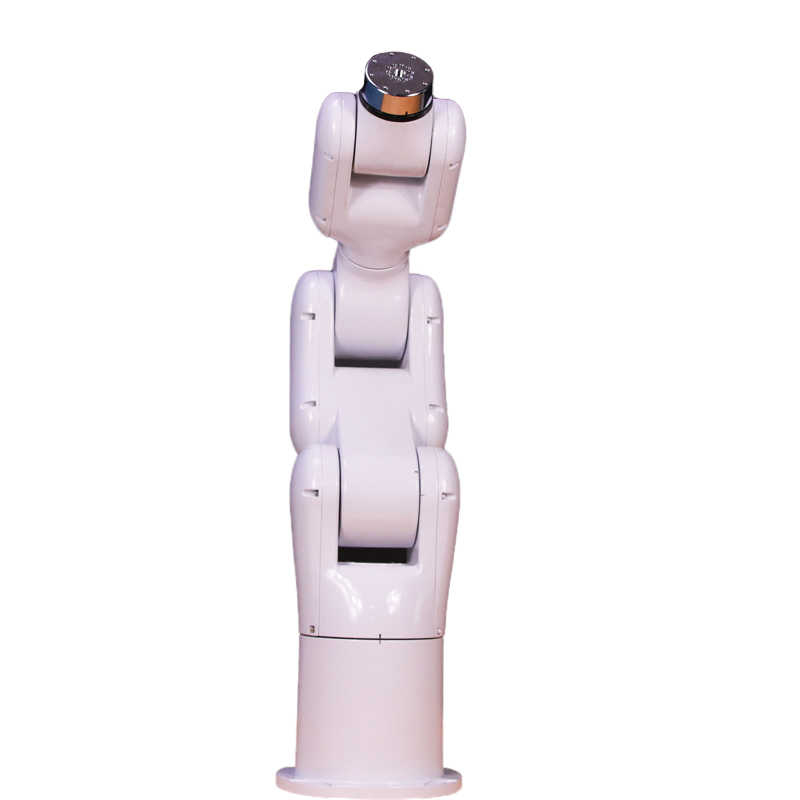

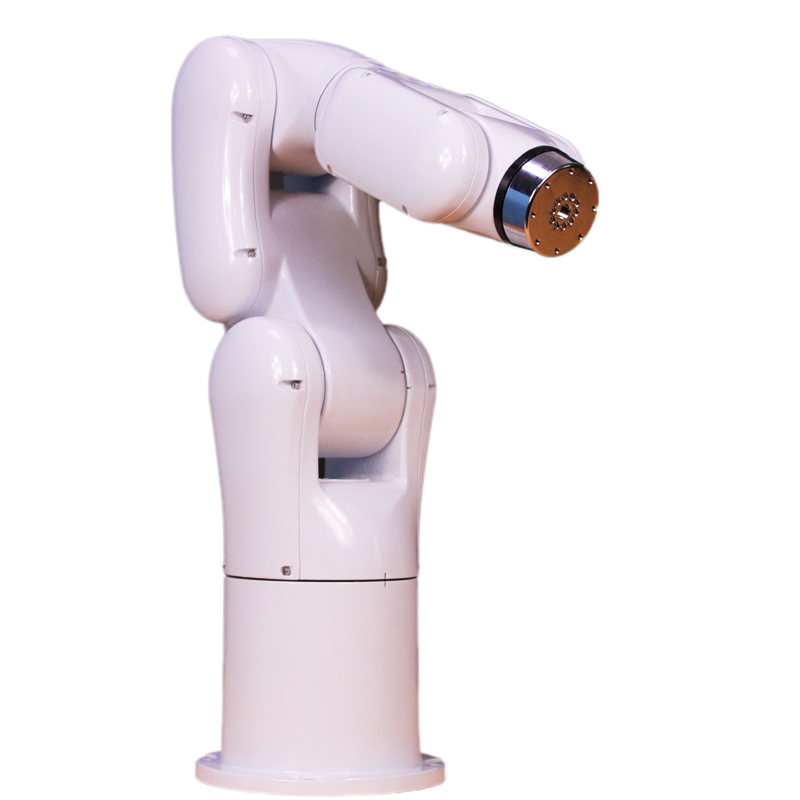

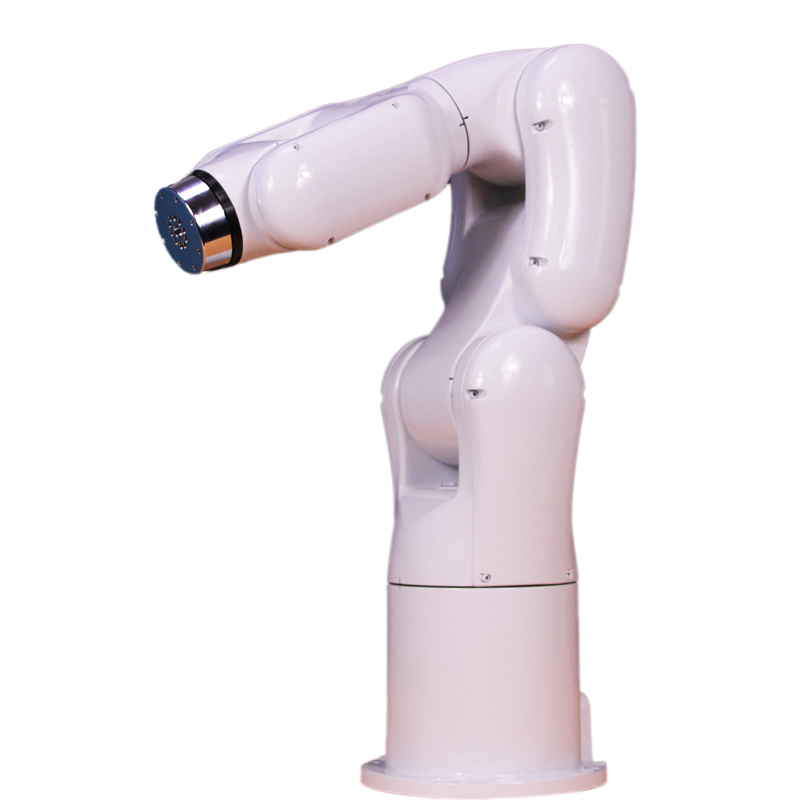

The light weight robot 603 uses integrated servo motors and harmonic reducers. Small in shape and light in weight can be operated flexibly in a small space. The control board is integrated on the robotic arm body, which can be used without control box, make it easier to carry and install on the AGV car. It can be installed on horizontal ground,wall or ceiling.

Features

All the control board, power, cables are built in the base of robot body
G-code programming
Light weight
Small in shape(the footprint is smaller than A5 paper)
Fast operation
Beautiful appearance
Repeatable positioning accuracy

Application

Educational research
1. Full understand of robotic arm technology and application
2. In-depth study to understand the structure and control system of the robotic arm
3. Providedll interface, supports secondary development, realize multi-functional integrated demonstration

Commercial application:
1. AUTO Robot Milk-tea/Coffee/Juice/Bartendingvending machine integration
2. Integration of medical equipment such as oral cavity and massage
3. Photography integration

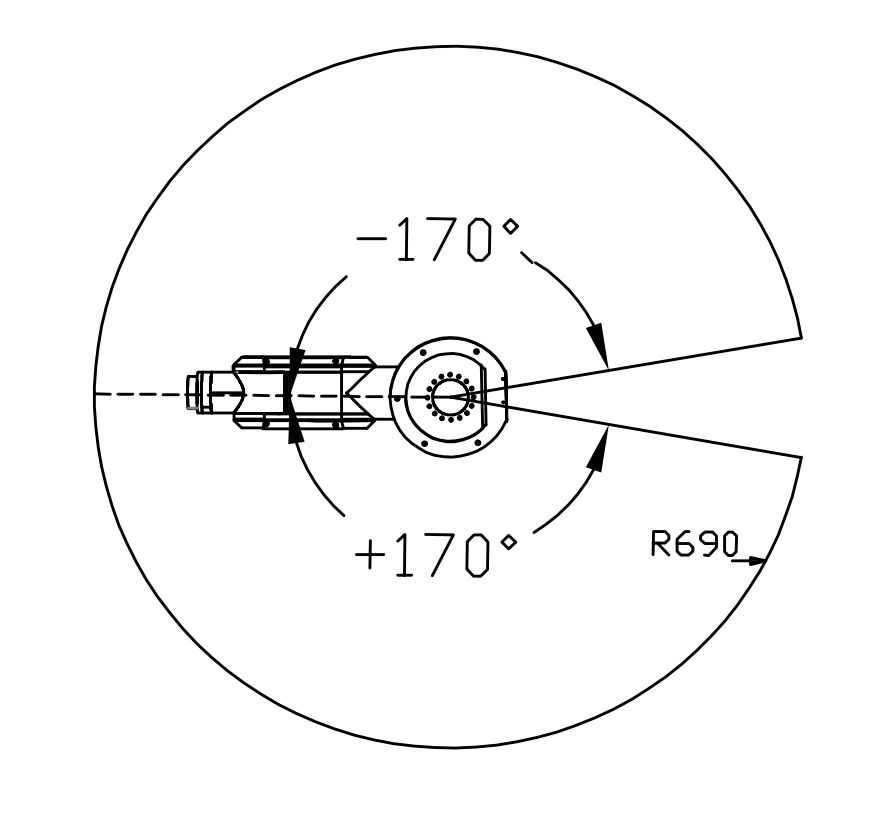

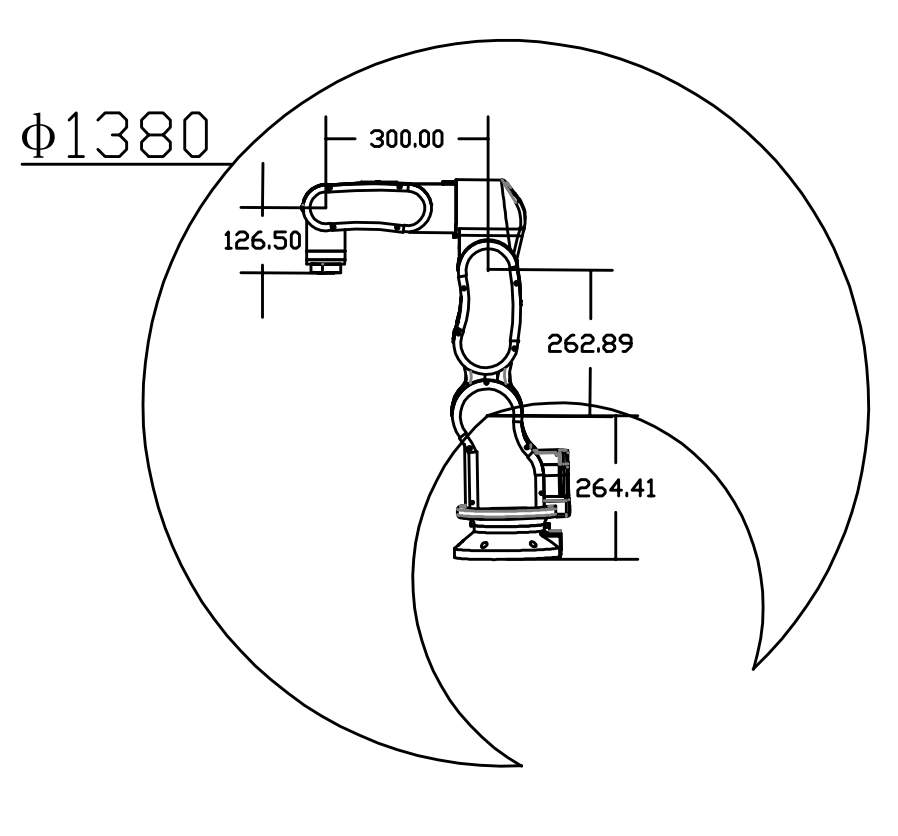

Working Range：

Poduct Parameters:

Payload			3KG
Voltage			110V/220V
Power			360W
Max Working Radius			540mm
Repeat Positioning Accuracy			±0.01mm
Application			Educational training, commercial demonstration
Working Range	Axis 1	±170°
		Axis 2	±110°
		Axis 3	+40°/-220°
		Axis 4	±185°
		Axis 5	±125°
		Axis 6	±360°
Max Speed	Axis 1	145°/s
		Axis 2	133/s
		Axis 3	140°/s
		Axis 4	172°/s
		Axis 5	172°/s
		Axis 6	210°/s
Structure Type			Series Connection
No. of aixs			6 Axis
Body Shell Material			Aluminum
Install To			Desktop
Speed Reducer			Harmomic reducer
Motor			Integrated Servo Motor

Product packaging

Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .

Company Information

RobotAnno (ShenZhen) Co., Ltd. is a professional R & D and manufacturer of desktop robotic arm solutions. Through continuous innovation, RobotAnno is committed to providing educational robots, light industrial robots and commercial robots with cost-effective, easy-to-operate, and experiential revolutionary desktop robotic products and solutions.

Aiming to provide high quality products and great service for buyer,we are strict on product quality control and offer instant communication service.Welcome to contact us!

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Samples arrived often need 3-10 days.

Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-10 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%

Send Message

Related Products

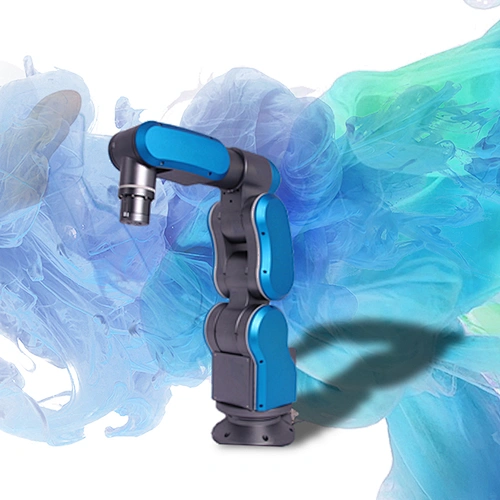

Universal 6 axis Robot Arm for spraying and handling

Model NO. 602

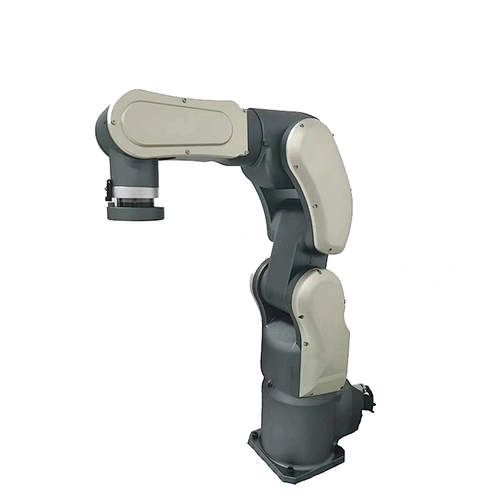

Small robotic arm 6 Axis Pick And Place Manipulator
